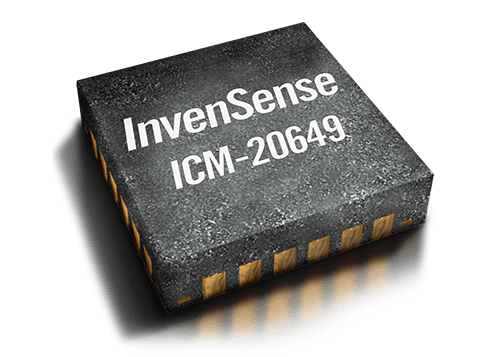

Part number ICM-20649 Product Type 6-Axis Gyroscope and Accelerometer from Manufacturer TDK InvenSense

Status: Discontinued | Data Sheet: pdf link image   | RoHS Compliance: Rohs Compliant
Features:
  • 3-Axis gyroscope with programmable FSR of ±500 dps, ±100 dps, ±2000 dps, and ±4000 dps

  • 3-Axisaccelerometer with programmable FSR of ±4g, ±8g, ±16g, and±30g

  • User-programmableinterrupts

  • Wake-on-motioninterrupt for low power operation of applications processor

  •  512-byte FIFO buffer enables the applicationsprocessor to read the data in bursts

  • On-Chip 16-bitADCs and Programmable Filters

  • DMP Enabled:

    • SMD, Step Count, Step Detect, Activity Classifier, RV,GRV

    • Calibration ofaccel/gyro/compass



Description:

Many of today’s wearable and sports solutions, which analyze the motion of a user’s golf or tennis swings, soccer ball kicks, or basketball activities, require higher than currently available ±2000 dps (degrees per second) FSR for gyroscope and ±16g FSR for accelerometer to better insure that critical data is not lost at the point of high impact or high speed rotation. The ICM-20649 6-axis inertial sensor offers the smallest size, lowest profile and lowest power in conjunction with industry leading high FSR.

Part Number:
ICM-20649
Manufacturer:
TDK InvenSense
Description:
Wide-Range 6-Axis MEMS MotionTracking™ Device for Sports and High Impact Applications
Market:
Motion, Sports
Market Status:
NEW
Operating Voltage Supply:
1.8 V
Digital Output:
I²C or SPI
Package Size:
3 x 3 x 0.9 mm
