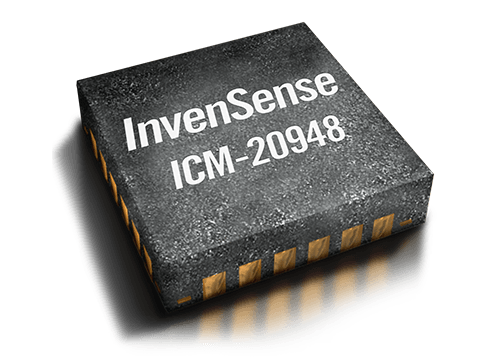

Part number ICM-20948 Product Type Motion Sensor - 9-Axis from Manufacturer TDK InvenSense

Status: Standard | Data Sheet: pdf link image   | RoHS Compliance: Rohs Compliant
General Description:

The ICM-20948 is the world’s lowest power 9-axis MotionTracking device that is ideally suited for Smartphones, Tablets, Wearable Sensors, and IoT applications.

  • 3-axis gyroscope, 3-axis accelerometer, 3-axis compass, and a Digital Motion Processor™ (DMP™) in a 3 mm x 3 mm x 1 mm (24-pin QFN) package
  • DMP offloads computation of motion processing algorithms from the host processor, improving system power performance
  • Software drivers are fully compliant with Google’s latest Android release
  • EIS FSYNC support
Features:
  • Lowest Power 9-Axis Device at 2.5 mW
  • 3-Axis Gyroscope with Programmable FSR of ±250 dps, ±500 dps, ±1000 dps, and ±2000 dps
  • 3-Axis Accelerometer with Programmable FSR of ±2g, ±4g, ±8g, and ±16g
  • 3-Axis Compass with a wide range to ±4900 µT
  • Onboard Digital Motion Processor™ (DMP™)
  • Android support
  • Auxiliary I2C interface for external sensors
  • On-Chip 16-bit ADCs and Programmable Filters
  • 7 MHz SPI or 400 kHz Fast Mode I²C
  • Digital-output temperature sensor
  • VDD operating range of 1.71V to 3.6V
  • MEMS structure hermetically sealed and bonded at wafer level
  • RoHS and Green compliant
Part Number:
ICM-20948
Manufacturer:
TDK InvenSense
Description:
World’s Lowest Power 9-Axis MEMS MotionTracking™ Device
Market:
Motion
Market Status:
NEW
Operating Voltage Supply:
1.71 - 3.6 V
Digital Output:
I²C or SPI
Compass Full Scale Range:
±4800 μT
Package Size:
3x3x0.9 mm
